Altair Inspire 2024.0 for PC Windows

Description

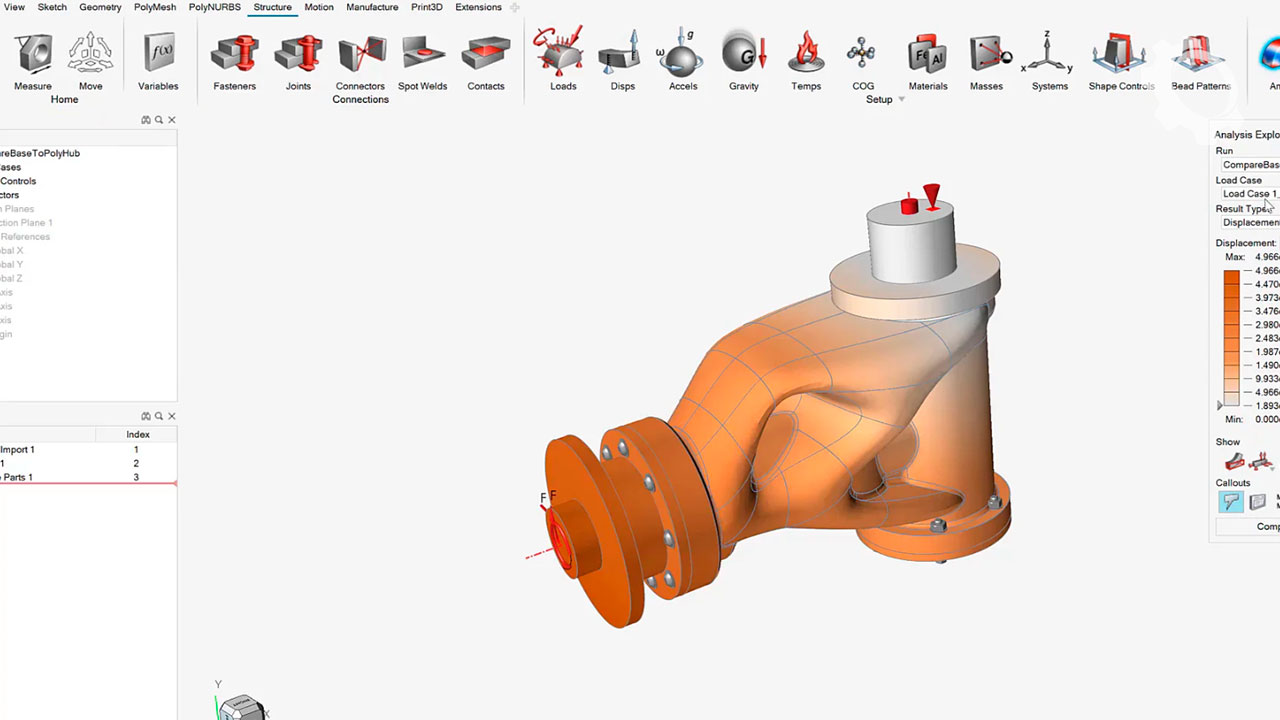

Overview of solidThinking Altair Inspire

Inspire enhances this process by generating a new material layout within a package space using the loads as input. The software is easy to learn and works with existing CAD tools to help structural design parts right the first time, reducing costs, development time, material consumption, and product weight.

Altair Inspire software is the industry’s most powerful and easy-to-use Generative Design/Topology Optimization and rapid simulation solution for design engineers. It enhances the concept development process by enabling simulation-driven design to increase your product’s efficiency, strength, and manufacturability. This can reduce costs, development time, material consumption, and product weight.

Features of solidThinking Altair Inspire

• Quickly generate dynamic motion of complex mechanisms, automatically identifying contacts, joints, springs, and dampers. Forces obtained from a motion analysis are automatically applied as inputs to structural analysis and optimization or can be used to determine initial requirements for motors and actuators.
• Generate optimized lattice and mixed solid-lattice structures, visualize simulation results in 3D, and export lattice designs in a .stl file format for 3D printing.
• View and interactively assign loads to load cases and import/export design loads in .csv file format with the new Load Cases Table.
• Design for additive manufacturing with overhang shape controls to help reduce overhangs to create more self-supporting structures.
• Automatically optimize the fit of PolyNURBS CAD geometry to generate design results with the new PolyNURBS Fit Tool.

Technical Details and System Requirements

• Supported OS: Windows 11 / Windows 10 / Windows 8.1 / Windows 7
• Processor: Multicore Intel Series or above, Xeon or AMD equivalent
• RAM: 4GB (8GB or more recommended)
• Free Hard Disk Space: 4GB or more recommended
