Engissol 2D Frame Analysis v7+Cross Section Analysis+Design v5

Description

Engissol’s 2D Frame Analysis and Cross Section Design Suite is a structural engineering software package designed for fast and accurate analysis and design of 2D structural frames and cross sections. Tailored for civil and structural engineers, the software provides a user-friendly interface with powerful computational tools for analyzing static and dynamic loads, calculating internal forces, and designing structural members based on various international codes.

The suite combines frame analysis, sectional property calculation, and design modules to offer a complete solution for small to medium-scale structural projects such as buildings, bridges, trusses, and other frameworks.

Key Features

• 2D Frame Analysis
  Perform linear and non-linear analysis of 2D frames under various load combinations, including moving loads and dynamic loads.

• Automatic Load Combinations
  Generate and apply multiple load combinations as per selected design codes (e.g., Eurocode, AISC, BS).

• Cross Section Analysis
  Compute section properties (area, moments of inertia, torsional constants, etc.) for complex or built-up cross sections.

• Section Design
  Design and verify steel, concrete, and composite sections under axial, shear, and bending loads based on international standards.

• Graphical Interface

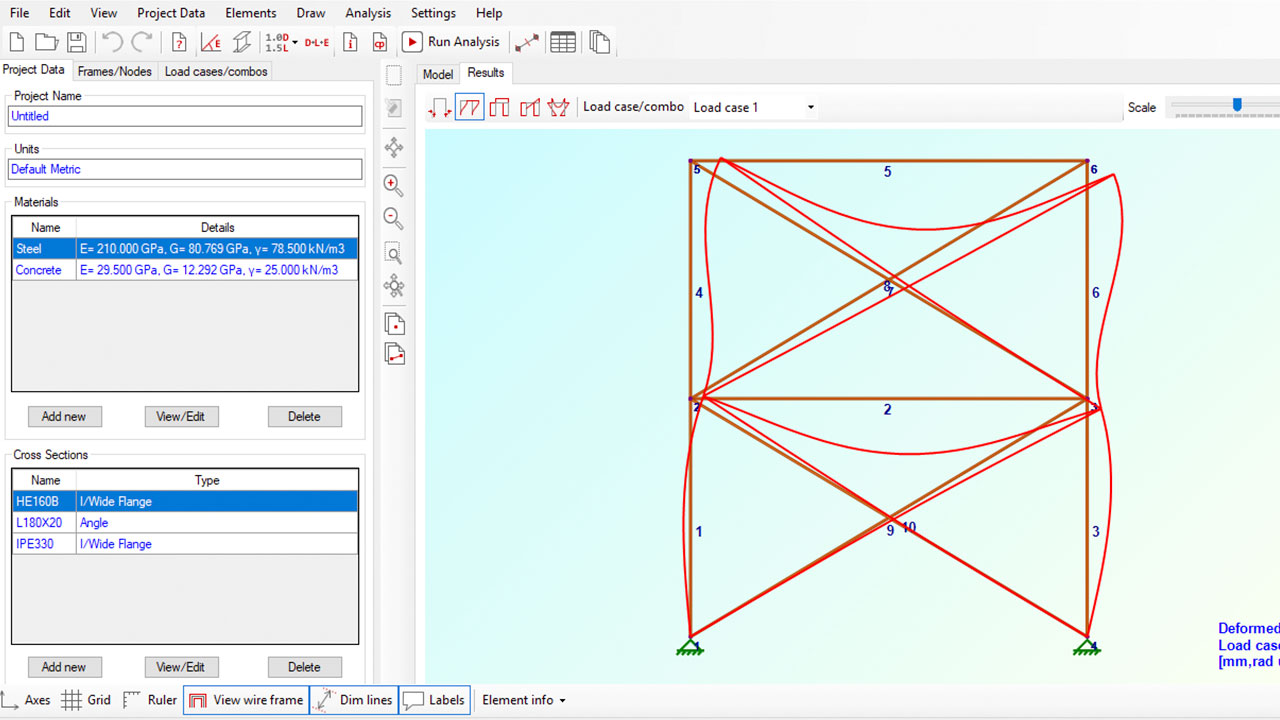

  Intuitive user interface for model creation, visualization of diagrams (moment, shear, displacement), and result interpretation.

• Code Compliance
  Supports multiple design codes for global compatibility (Eurocode, AISC, BS, etc.).

• Reports and Documentation
  Generate detailed analysis reports, design checks, and graphical outputs for documentation and submission.

• Material and Section Libraries
  Includes extensive libraries for structural steel and concrete materials and standard cross-section profiles.
