Geometric Stackup v2.4 for PC Windows

Description

Fast, easy and accurate way to perform tolerance stackup analysis on critical parts or assemblies. Automatically assesses minimum and maximum tolerances on critical assemblies using Worst Case Scenario & RSS (Statistical Variation) methods.

Works directly with CAD geometry, eliminating the process of tedious and error-prone manual entries of nominal values from CAD models to excel sheet. Employs feature recognition technology that automatically recognizes and captures key features from all native CAD parts. Designed for the non-specialist, easy to use and shorter learning curve, no special training required

Overview of Geometric Stackup 2 Features

• Automatically assesses minimum and maximum tolerances on critical assemblies using Worst Case Scenario & RSS (Statistical Variation) methods
• Works directly with CAD geometry, eliminating the process of tedious and error-prone manual entries of nominal values from CAD models to excel sheet
• Employs feature recognition technology that automatically recognizes and captures key features from all native CAD parts
• Designed for the non-specialist, easy to use and shorter learning curve, no special training required
• Integrated with CAD (SolidWorks) and PLM (WindChill) systems.
• Verify manufacturing tolerances for consistent fit and maximum part interchangeability

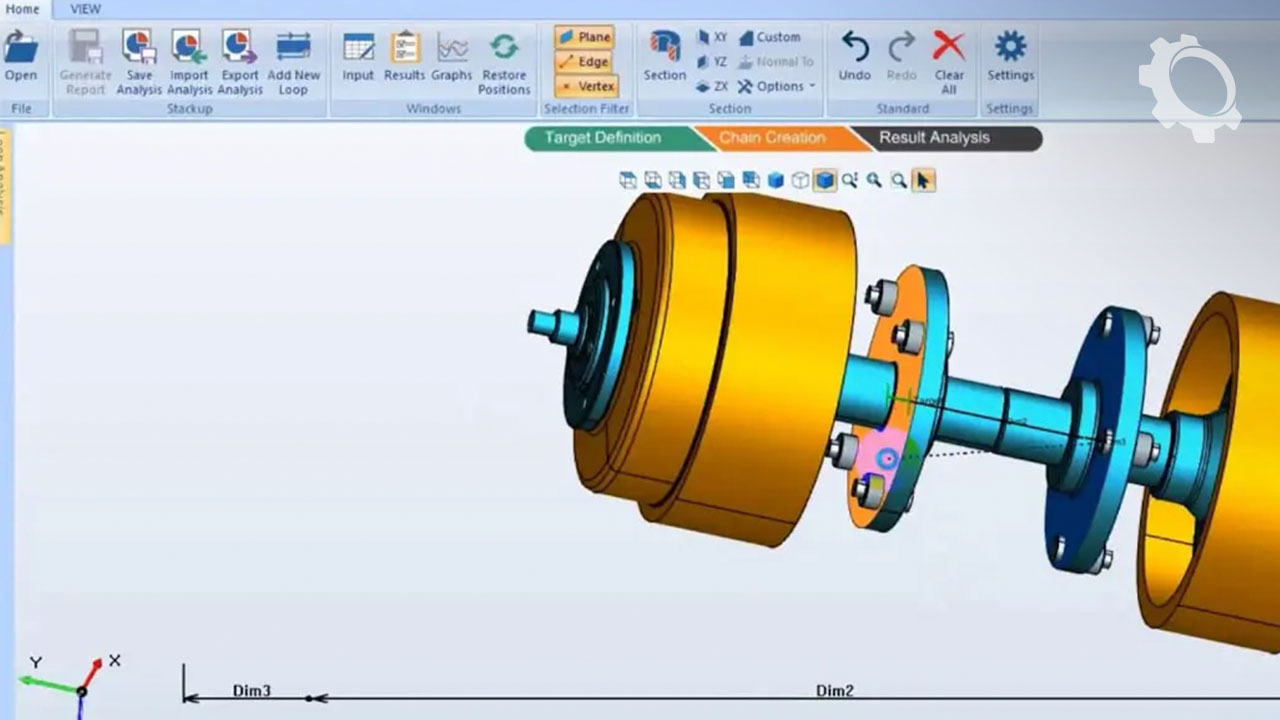

• Interactive Graphic Interface provide 3D visualization of tolerance loops
• Intuitive and simple interface making it easy to perform 1-D stackup analysis on any CAD file format

Technical Details and System Requirements

• Supported OS: Windows 7/8/10
• Processor: Pentium IV or above
• RAM: 1 GB RAM
• Free Hard Disk Space: 200 MB or more
