Piping Systems FluidFlow v3.5 for PC Windows

Description

Piping Systems FluidFlow is an advanced fluid flow simulation software used to model, analyze, and optimize piping networks for liquids, gases, steam, and slurries. It helps engineers design efficient and reliable fluid systems across a wide range of industries.

Technical Description

FluidFlow enables accurate simulation of steady-state fluid dynamics in complex pipe networks, including pressure drop, flow distribution, heat transfer, and equipment performance. The software supports the modeling of pumps, compressors, valves, heat exchangers, tanks, and orifices, while accounting for compressible and incompressible flow, two-phase flow, and thermal effects. It offers built-in fluid databases, intuitive drag-and-drop interfaces, and automated error checking to improve design accuracy and efficiency.

Key Features Description

• Models liquids, gases, steam, and slurry systems

• Pump and valve sizing with performance curves

• Heat exchanger and thermal loss simulation

• Built-in fluids and components libraries

• Pressure drop and flow rate analysis

• Cavitation, flashing, and choked flow checks

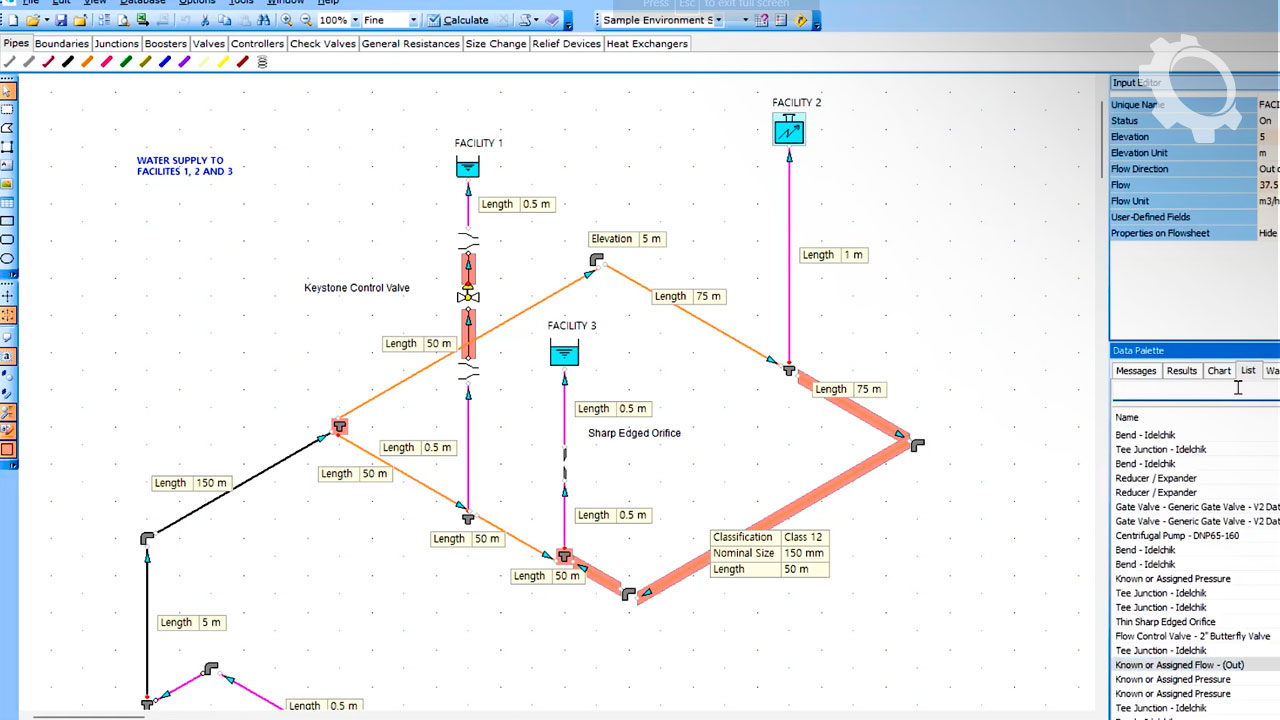

• Intuitive drag-and-drop schematic interface
