PROCAD 3DSMART Plus 2023 for PC Windows

Description

The modeling software will help you create 3D plant models for piping, equipment, and structural steel and securely store this valuable project data in an integrated SQL Server database. It provides designers with a complete set of intelligent, time-saving modeling tools for plant design, skid design, and other specialized construction.

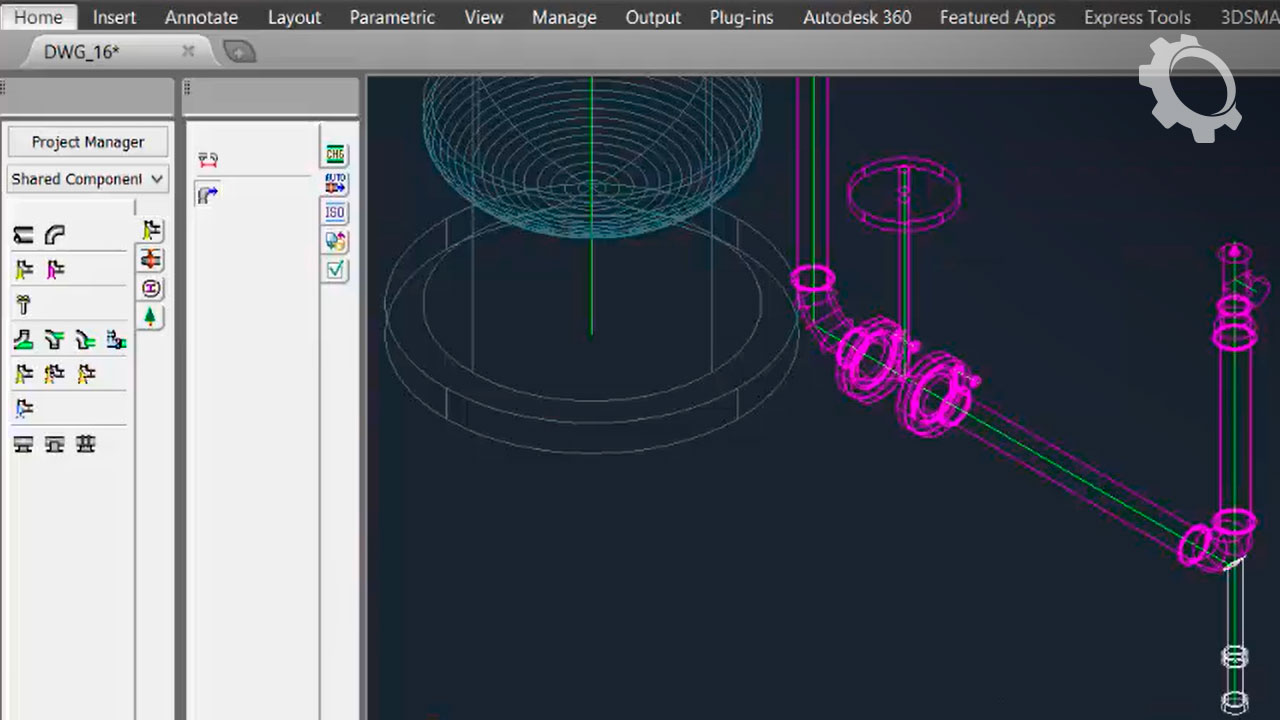

The program will display colored cones at all the possible connection points in the model. Choose the cone at the desired connection point, and 3D Modeler will auto-check piping connection rules: such as pipe size, line-number match, pipe-rating match, and wall-thickness match. Once the connectivity rules are satisfied, the new component connects perfectly to the existing component.

Features of PROCAD 3DSMART Plus

• Auto-Route feature for automatic component connections
• Auto-Weld automatically adds welds when fittings are joined
• Auto-Gasket places gaskets automatically when required by fittings
• Flange Set Auto-Complete adds all the components needed in a flange set connection
• Automated generation of plans and sections
• Ability to stretch or break steel members and other linear components
• Ability to delete holes and coping of existing steel members
• Project settings restrict the usage of piping specs to those specified by the Project Manager
• Automatic background compliance checks alert users when straying from established piping design parameters
• Innovative editing tools to copy, reconnect, re-position or move piping components in the 3D model

Technical Details and System Requirements

• Supported OS: Windows 11 / Windows 10 / Windows 8.1 / Windows 7
• Processor: Multicore Intel Series or above, Xeon or AMD equivalent
• RAM: 4GB (8GB or more recommended)
• Free Hard Disk Space: 8 GB or more recommended
