SynaptiCAD Product Suite 20.51 for PC Windows

Description

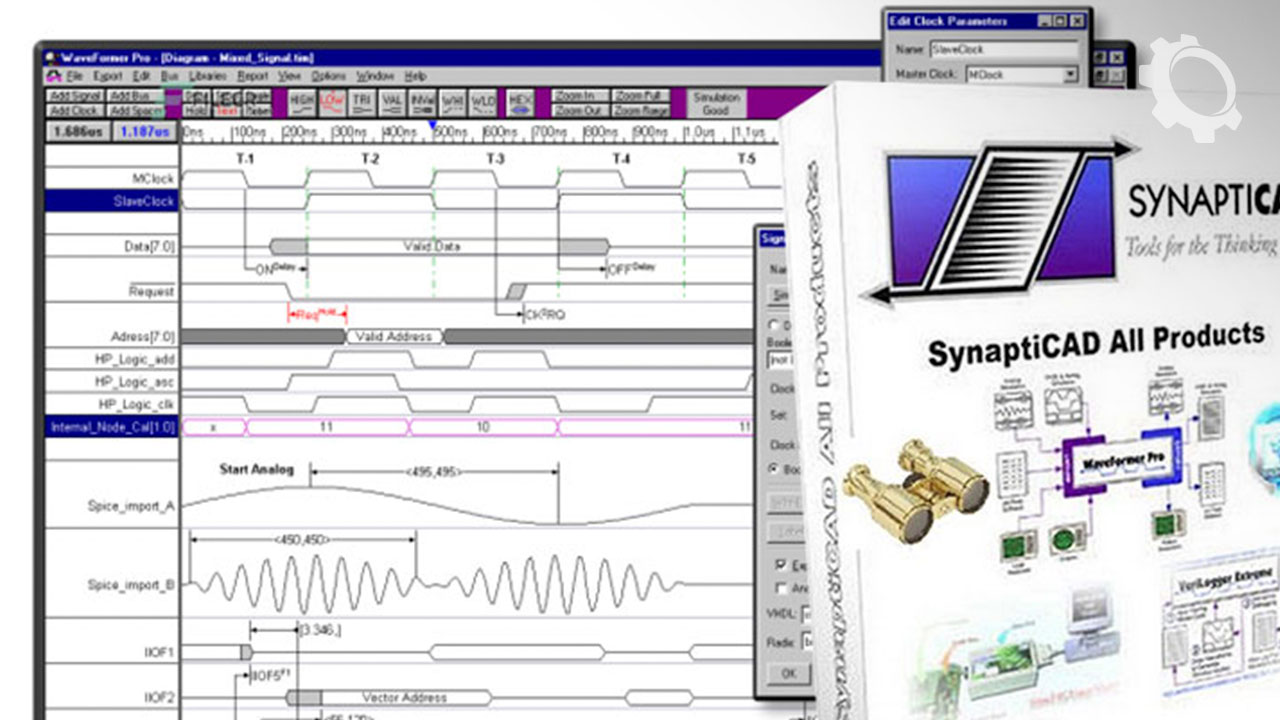

SynaptiCAD Suite is a software collection that allows you to create and edit timing diagrams. The TestBencher application provides you all the tools required to create and maintain test benches with minimum effort. Want a powerful yet easy-to-use simulation environment? Synaptics simulation and debugging tools provide a standard interface for controlling all of your simulation tools.

Synaptics timing diagram editors have the most extensive and accurate timing analysis features available in any timing diagram editor on the market, including delay correlation, convergent fan-out, and clocks that model jitter and buffer delays.

Three different levels of editing let you pick the best price and feature set for your application. Free yourself from the time-consuming process of manually writing Verilog, VHDL, and SystemC testbenches. Generate them graphically from timing diagrams.

Technical Details and System Requirements

• Supported OS: Windows 10 / Windows 8.1 / Windows 7
• Processor: Multi core Intel Series or above, Xeon or AMD equivalent
• RAM: 4GB (8GB or more recommended)
• Free Hard Disk Space: 4GB or more recommended
